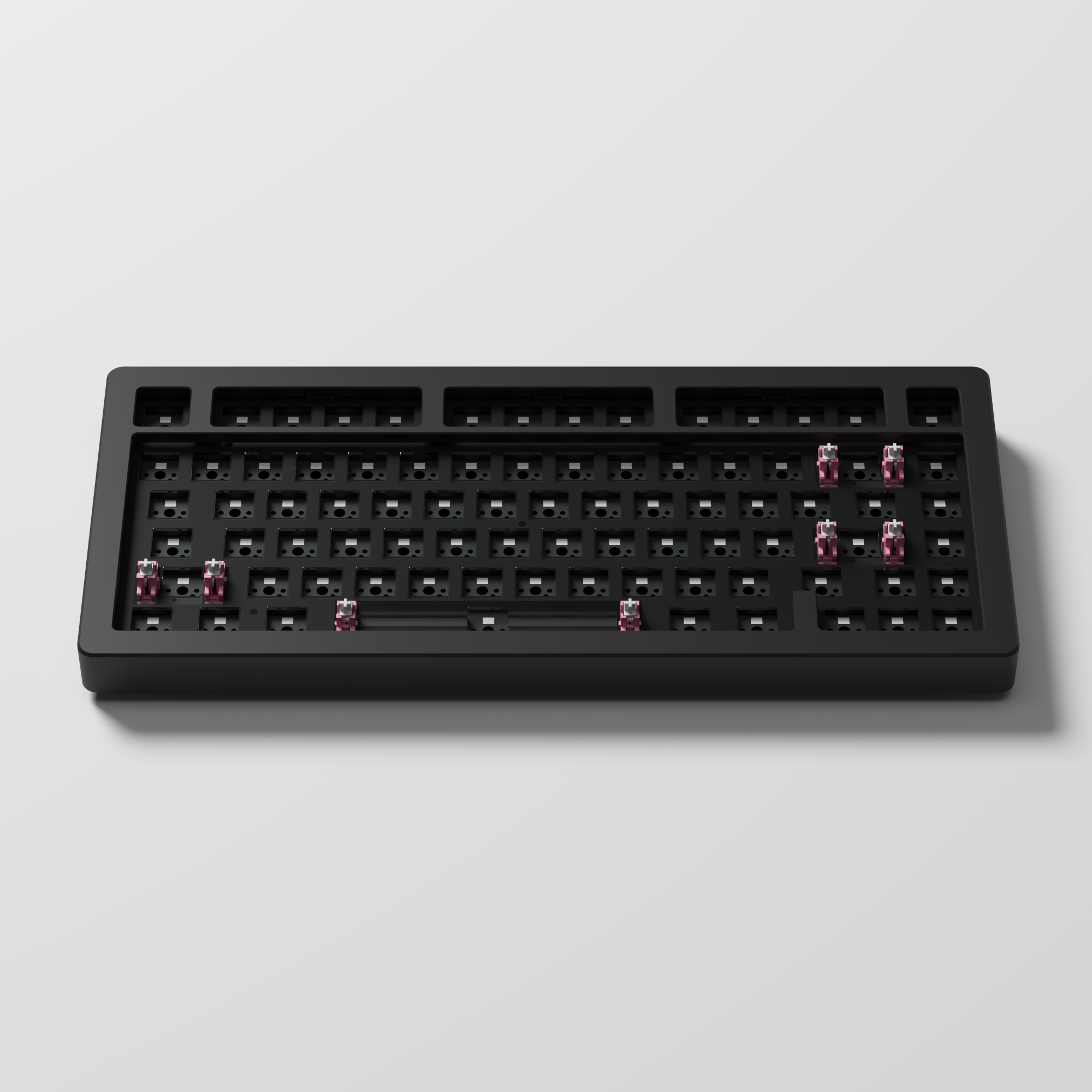

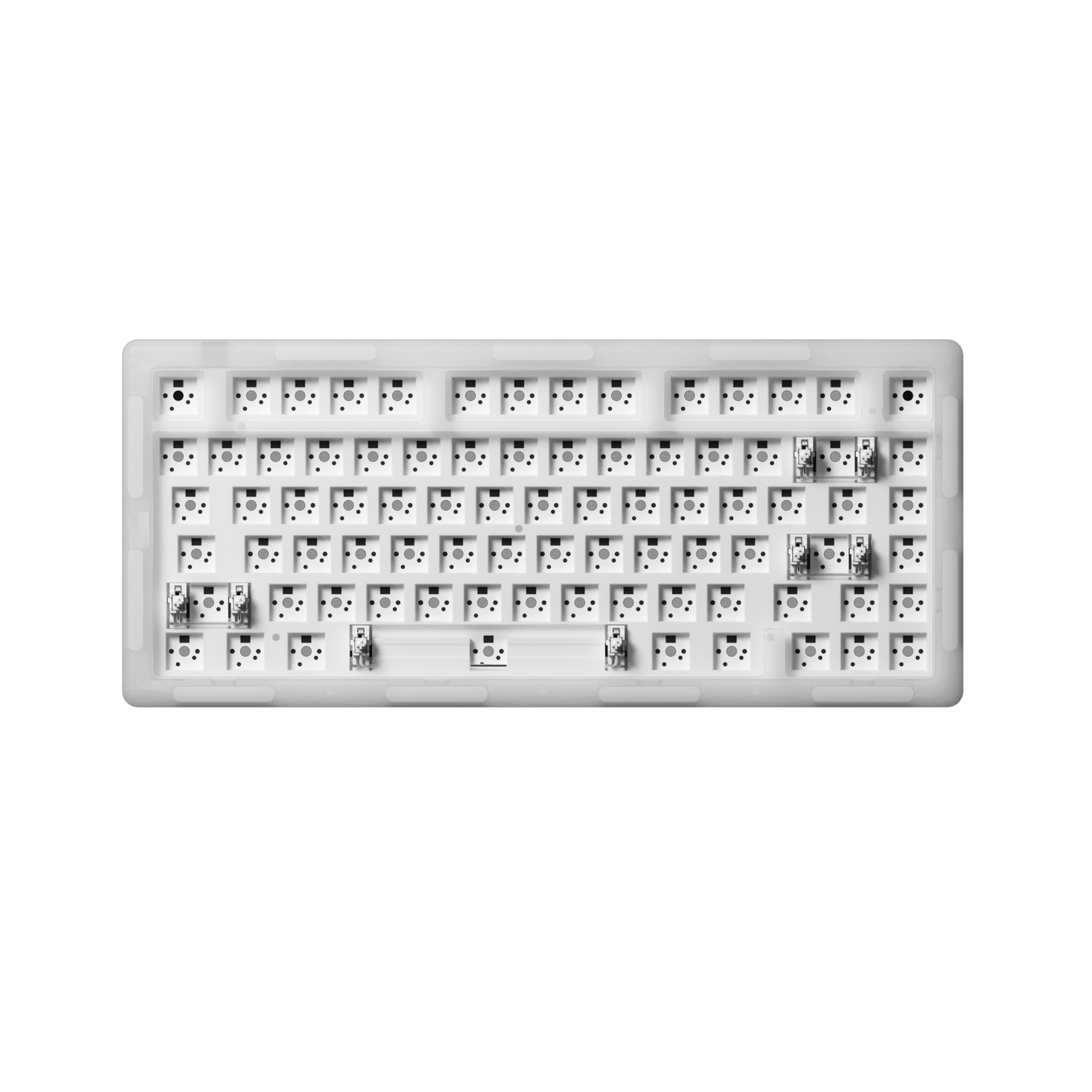

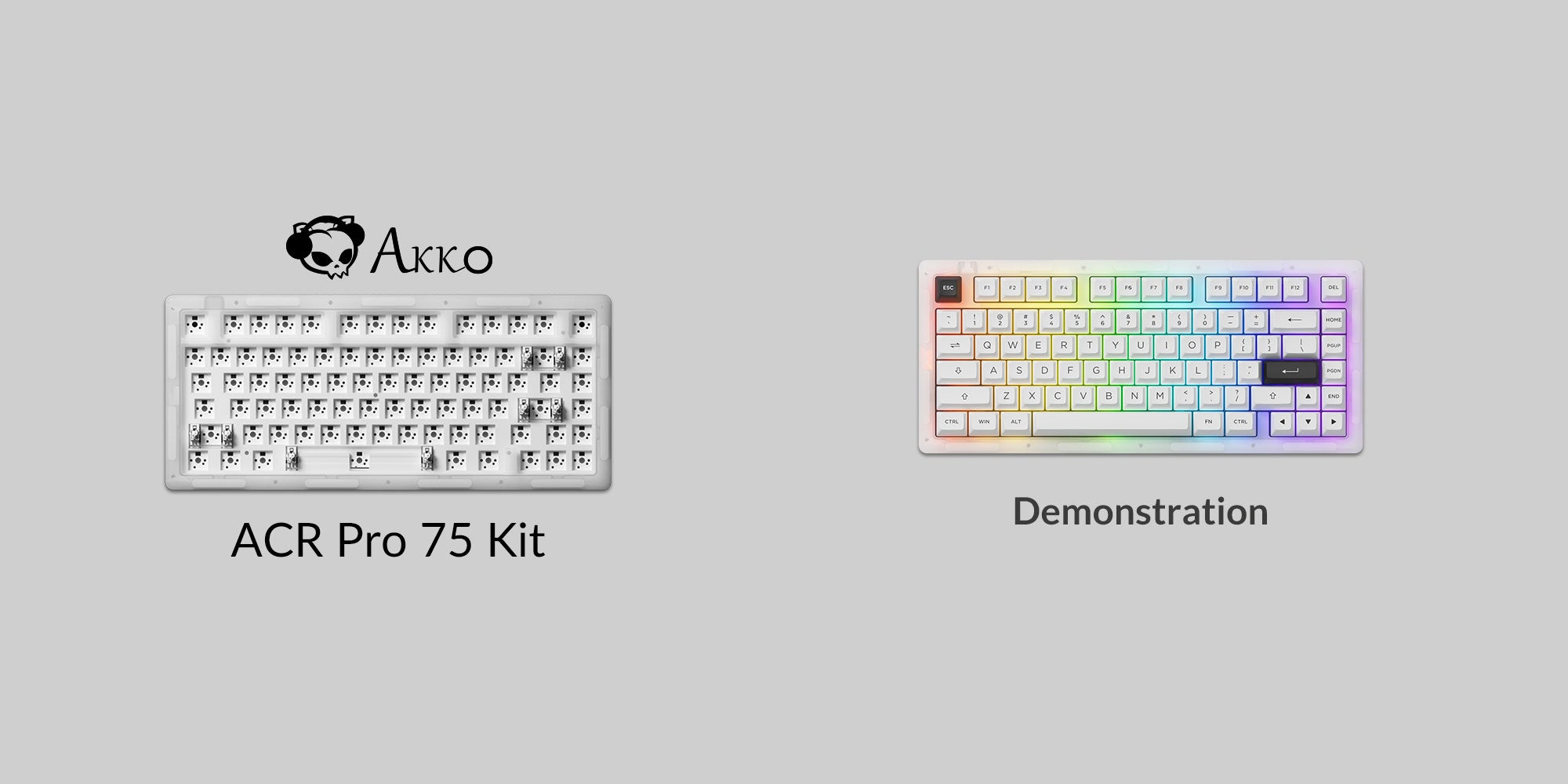

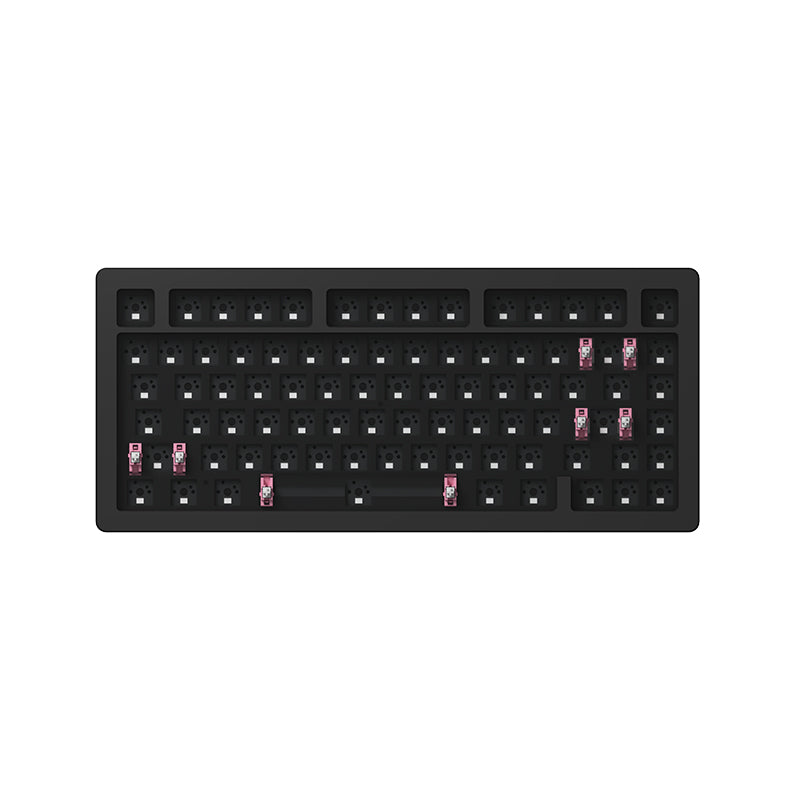

ACR Pro 75 DIY Kit
75% 81-Key Alice Gasket Mount Mechanical Keyboard DIY Kit.

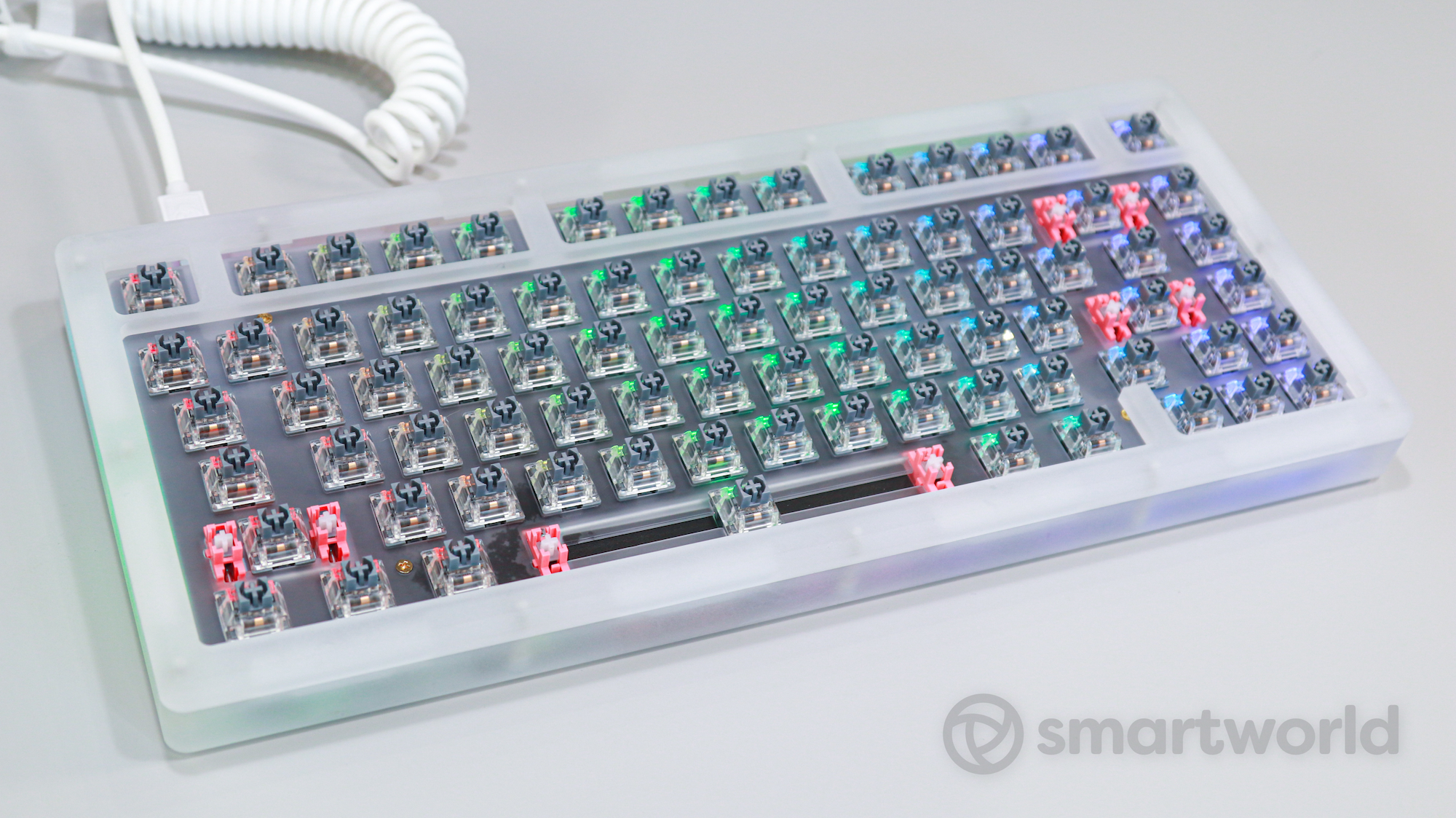

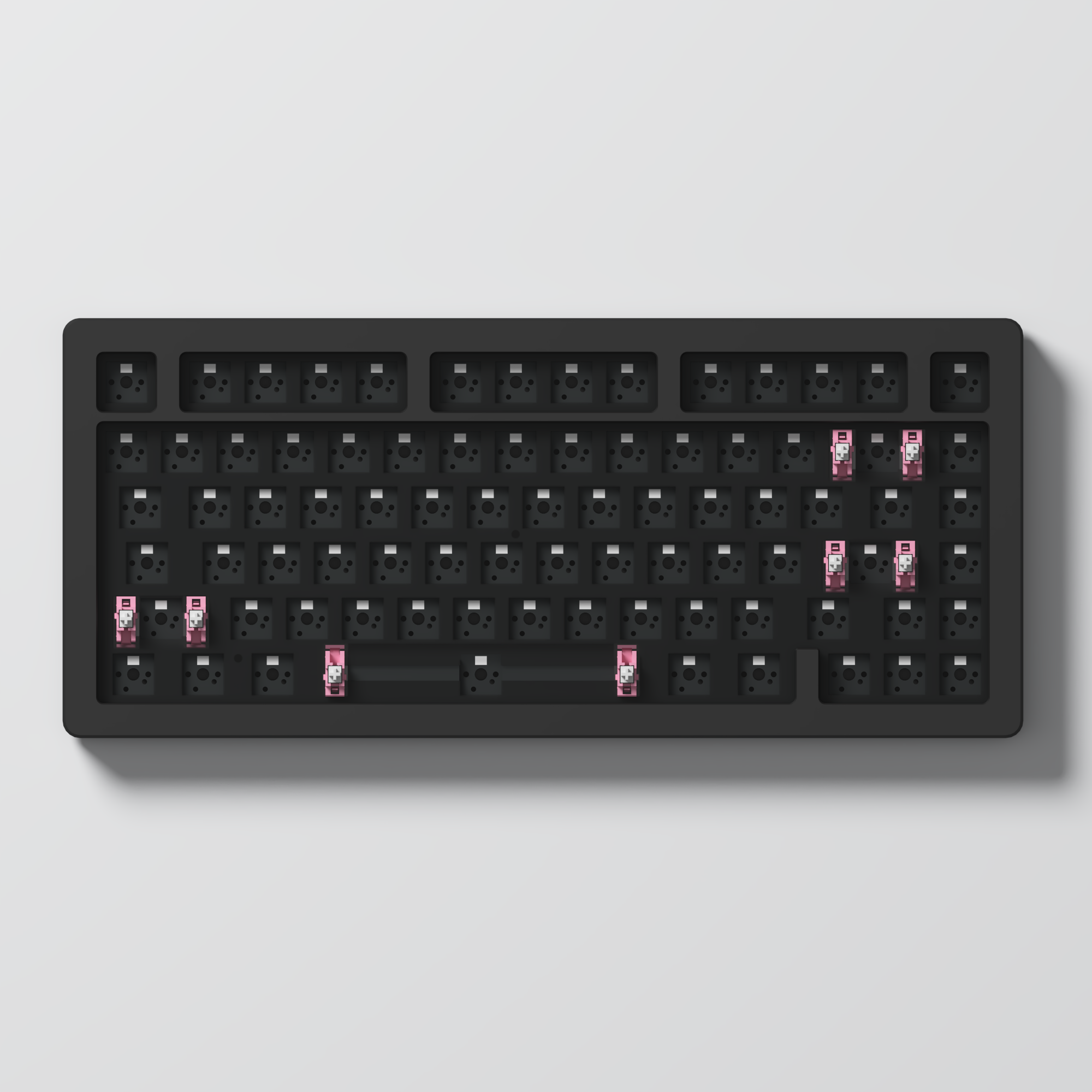

The AKKO ACR Pro 75 DIY kit is designed with a 75% layout to be suitable for both offices and gamers. This keyboard kit is equipped with hot-swap connectors that allow you to install switches instantly without soldering. It is also compatible with all mechanical north-facing 3/5-pin switches, such as switches/Cherry MX switches/Kailh switches/TTC switches and Gateron switches. Choose an elegant and durable CNC case, and make a keyboard.

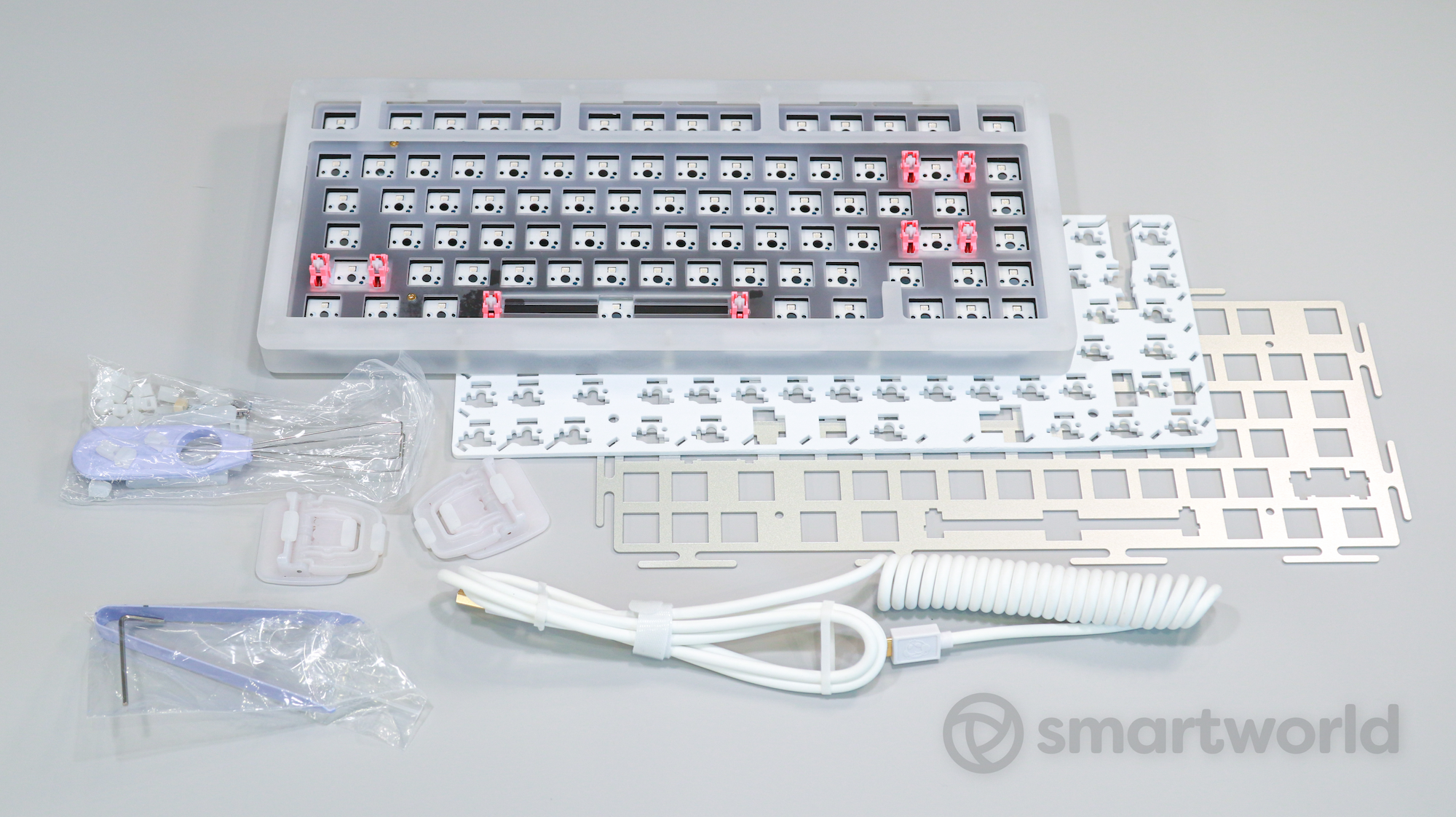

Please note: This keyboard is a barebone keyboard and requires simple assembly. Switches and keycaps are sold separately.
Do not pull out the accessories on the PCBA board, especially the terminals and signal lines. It can easily cause damage to the terminal pins and cause losses.
Defects resulting from disassembly of our product, improper usage and incorrect installation are not covered by warranty.
Model: ACR Pro Alice Plus Kit
RGB LED backlight + hot-swappable + wired (USB-C mode) All in one!
Hot-swappable
- Equipped with high-quality hot-swap sockets that allow users to swap out the switches they want after the fact without soldering
Custom RGB & Keys
- All of Alice's keys can be remapped to activate action sequences, except for the keys used to control macro mode (Fn/Esc/Win/right Alt). The keyboard features built-in RGB backlighting with customizable lighting effects (per key RGB supported) through the Cloud driver in wired form
Anti-ghosting keys
- With the N-Key Rollover (NKRO) feature, the keyboard supports simultaneous key presses without key conflicts, which is especially important for optimizing the gaming experience.
Specifications

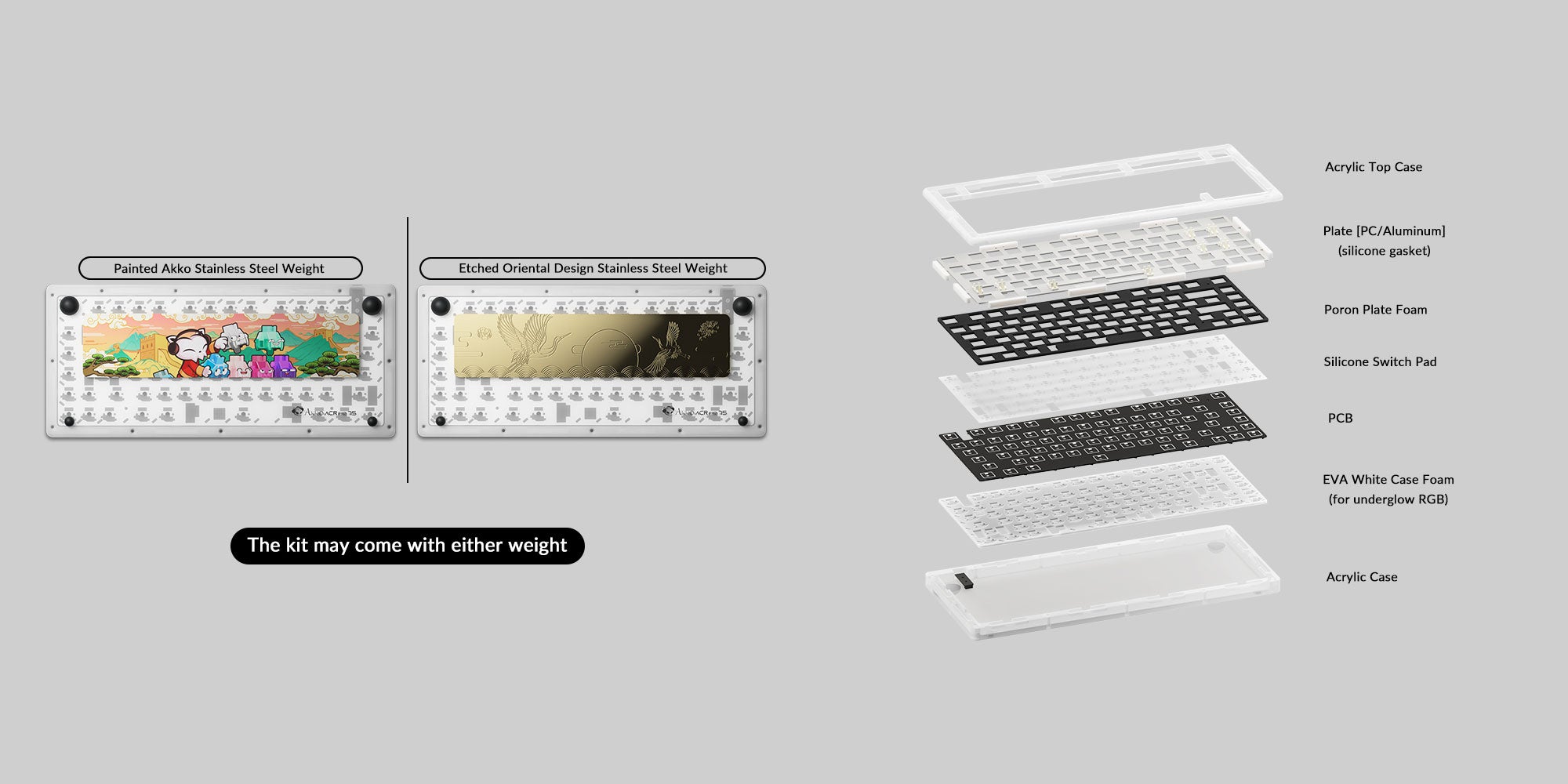

- Construction: Gasket Mounted
- Number of Keys: 65% 68-keys
- Connectivity: USB Type C wired
- Case Material: Acrylic+CNC
- Plate: Polycarbonate (with replacement aluminum plate)
- Plate foam: Poron
- switch pad: silicone
- Case foam: EVA
- Hot-swappable: Yes

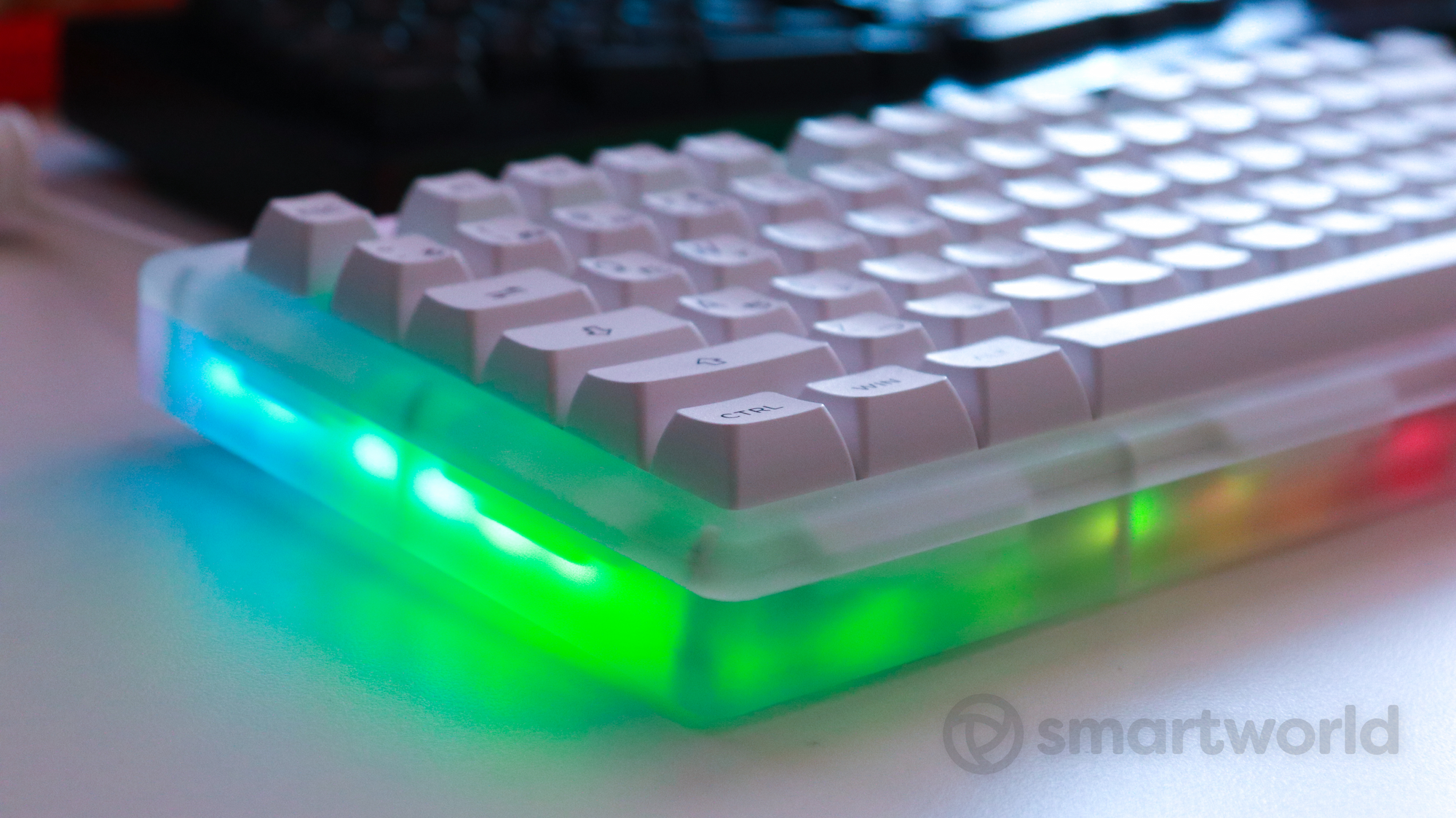

- RGB backlight: Yes

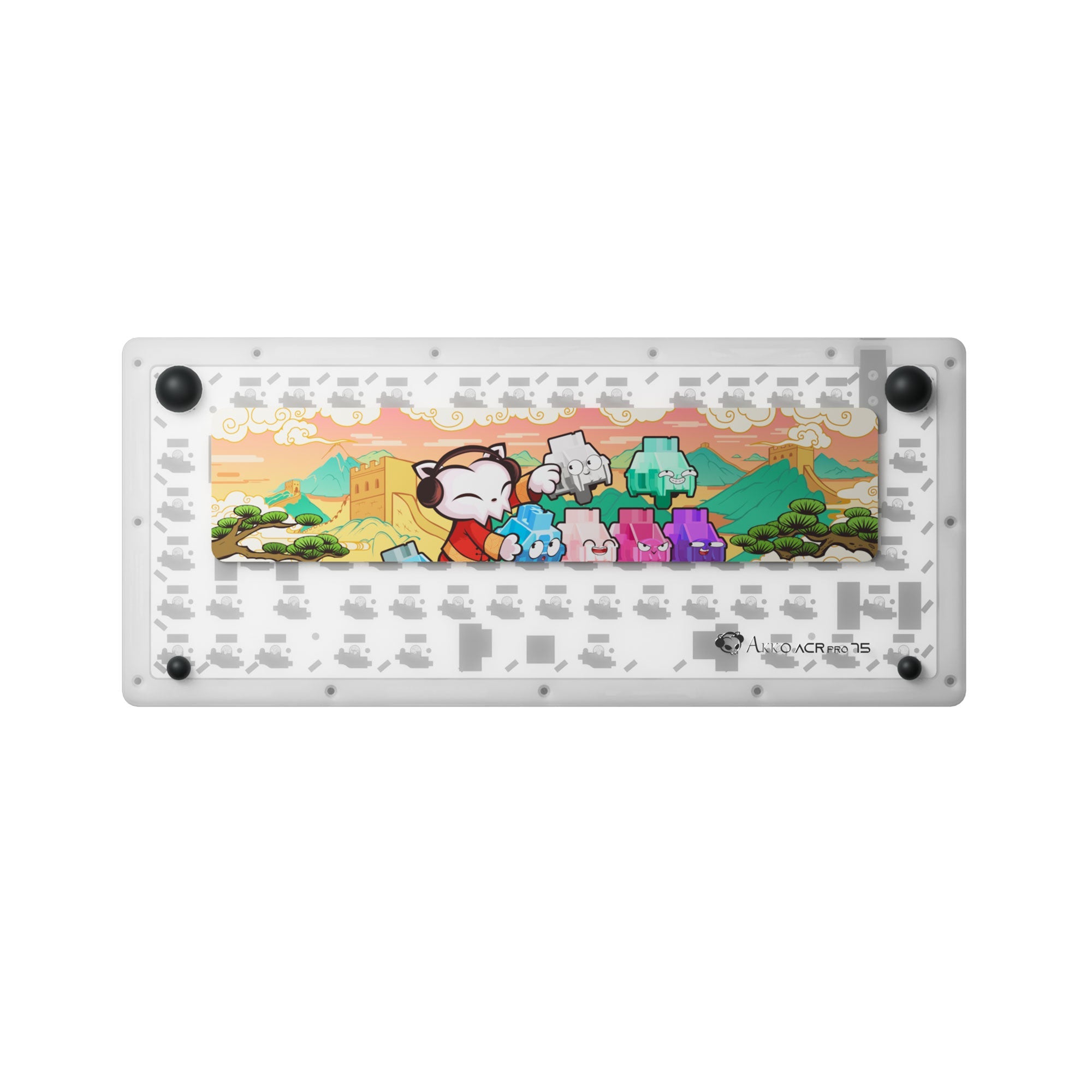

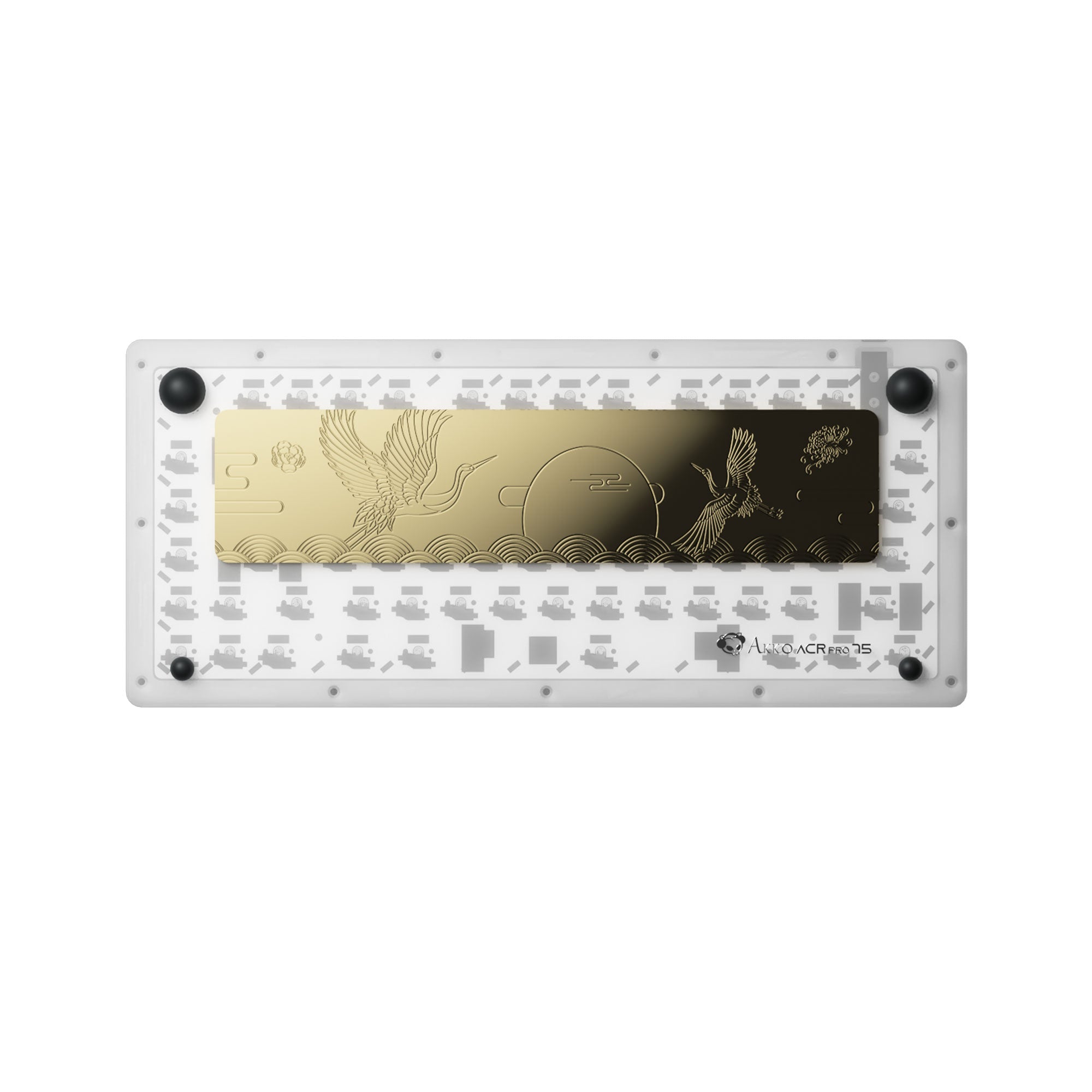

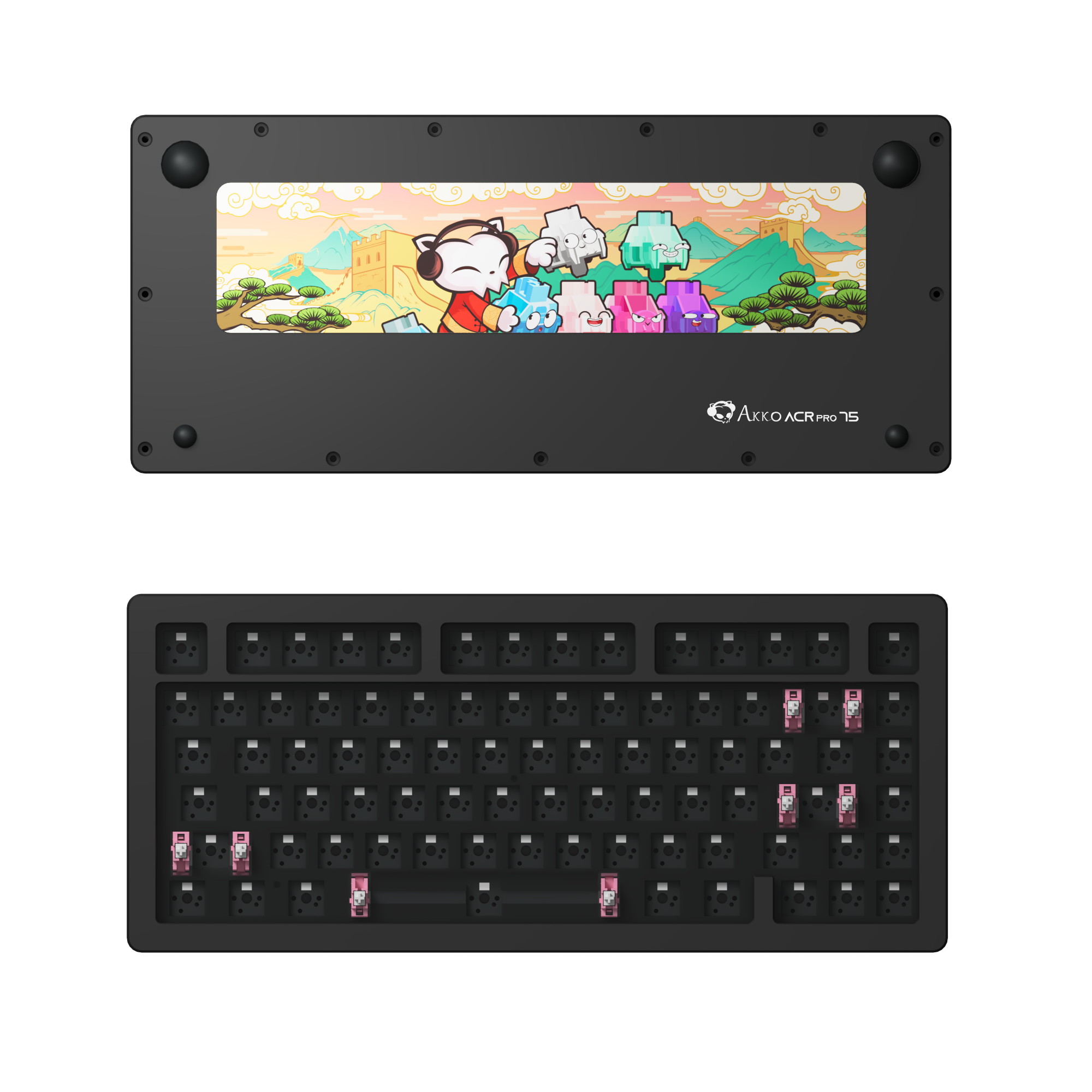

- Additional weight on the back of the barebone: Yes

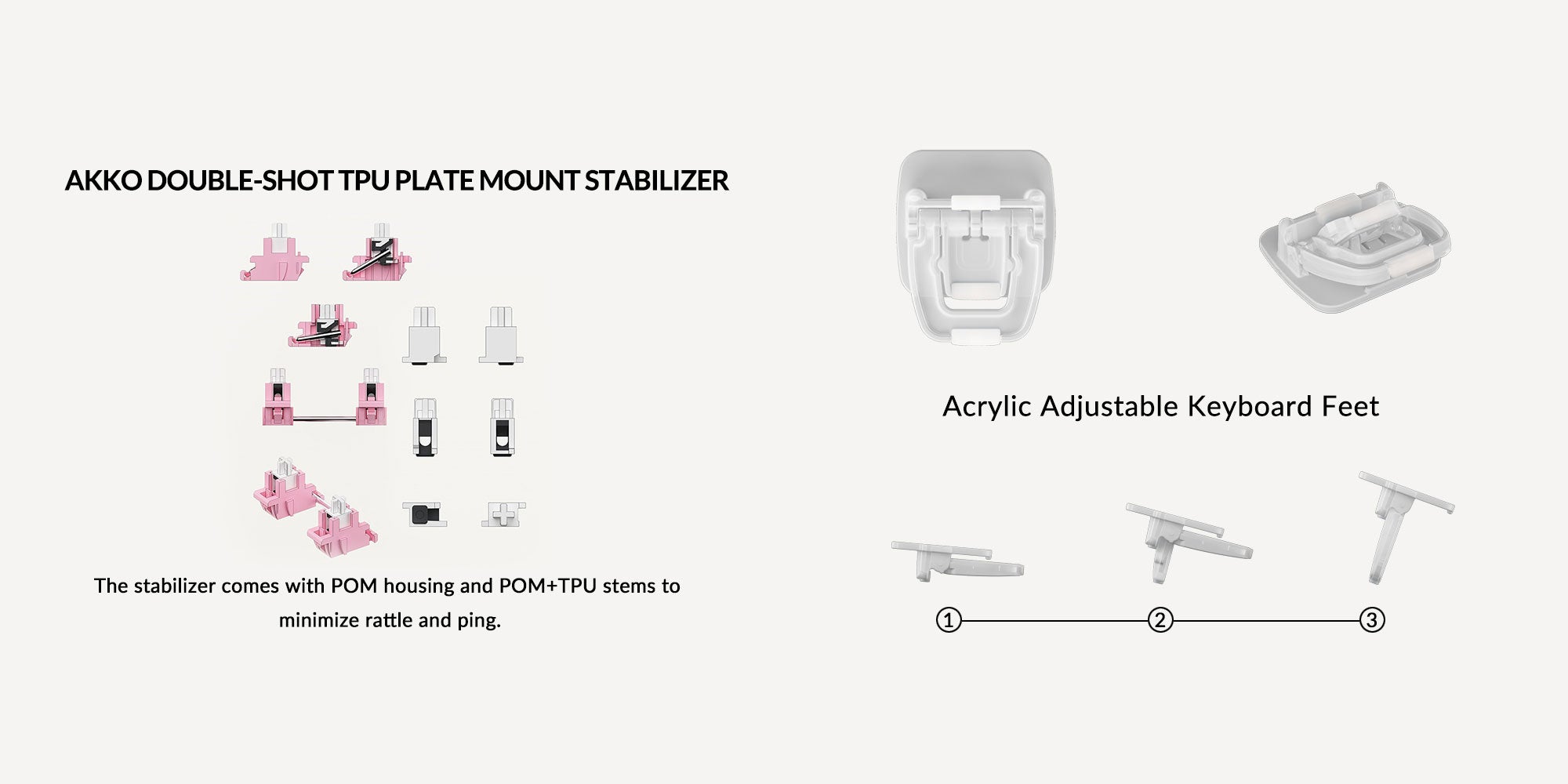

- Stabilizers: Plate Mount Lubed Stabilizer (also supports Screw-in Stabilizer)
- Software for RGB customization and key mapping: Could Driver

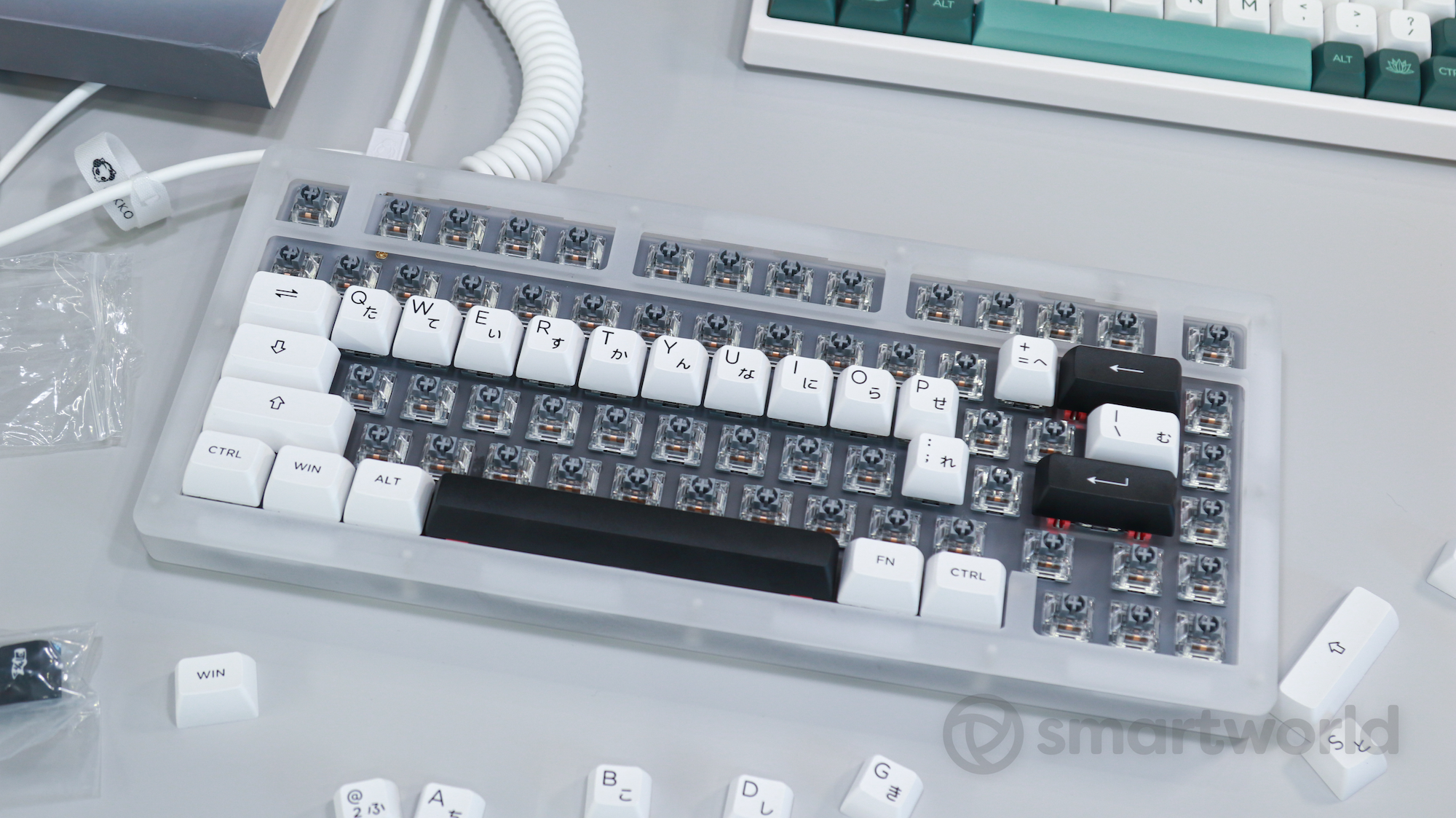

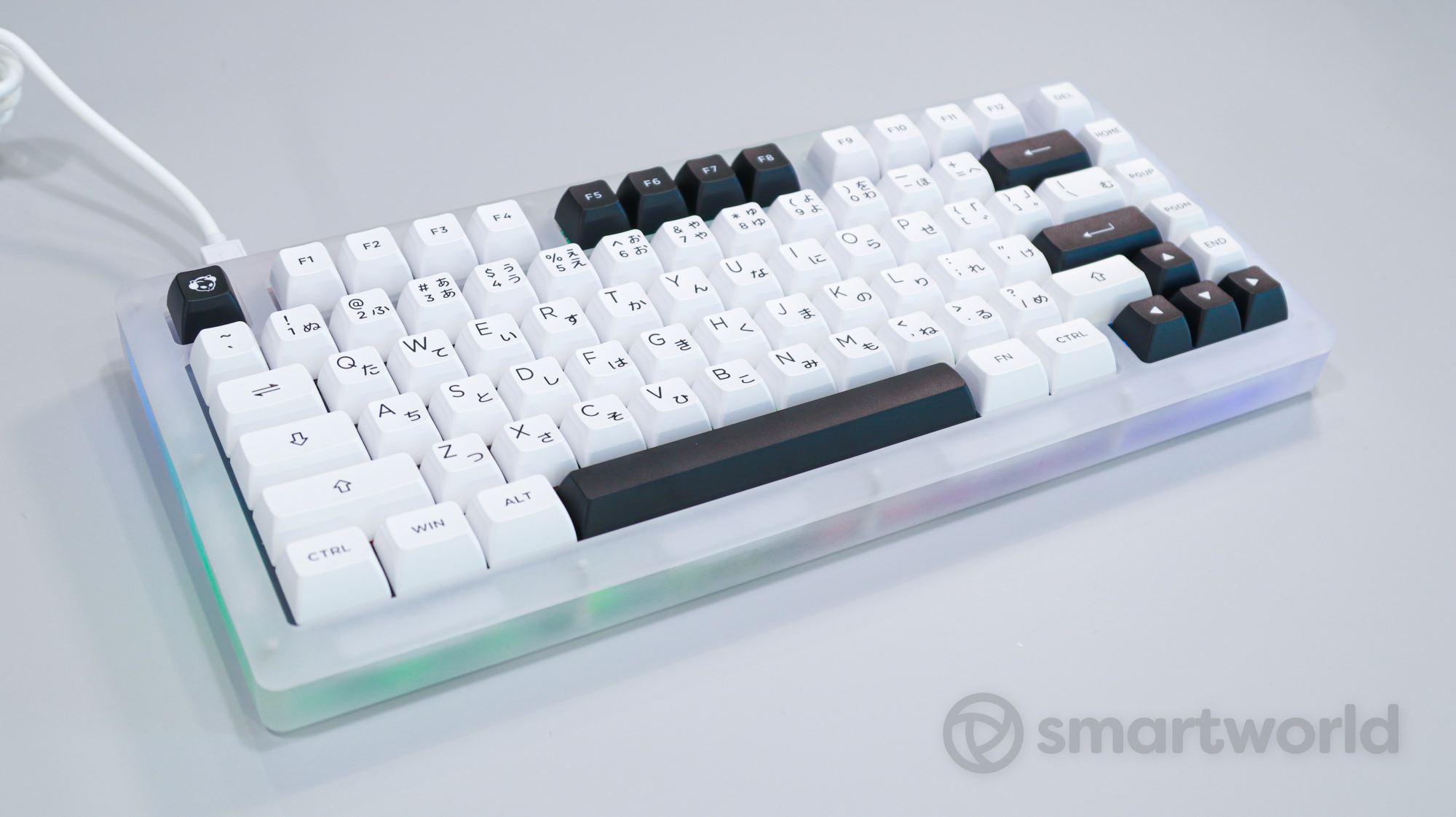

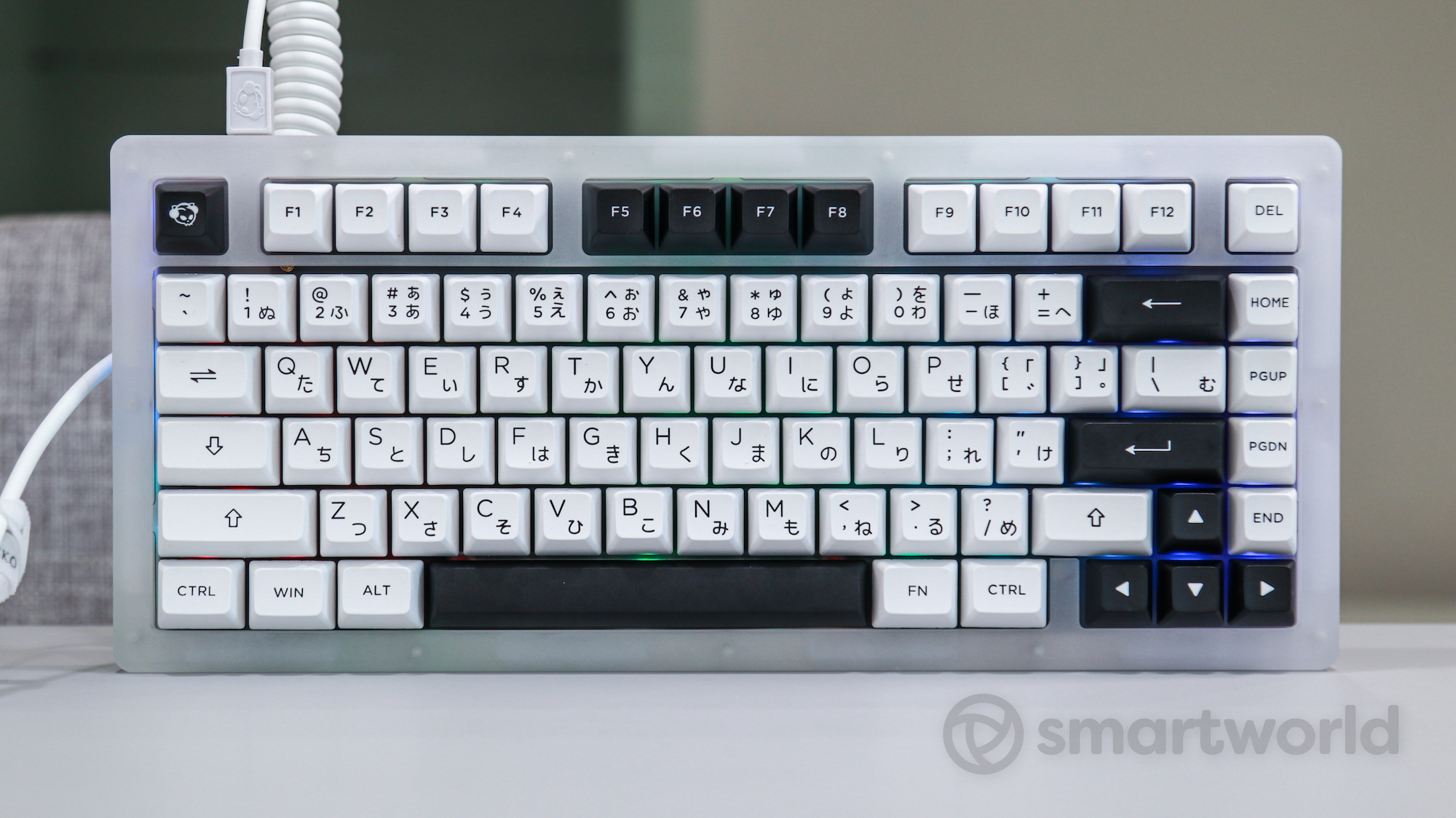

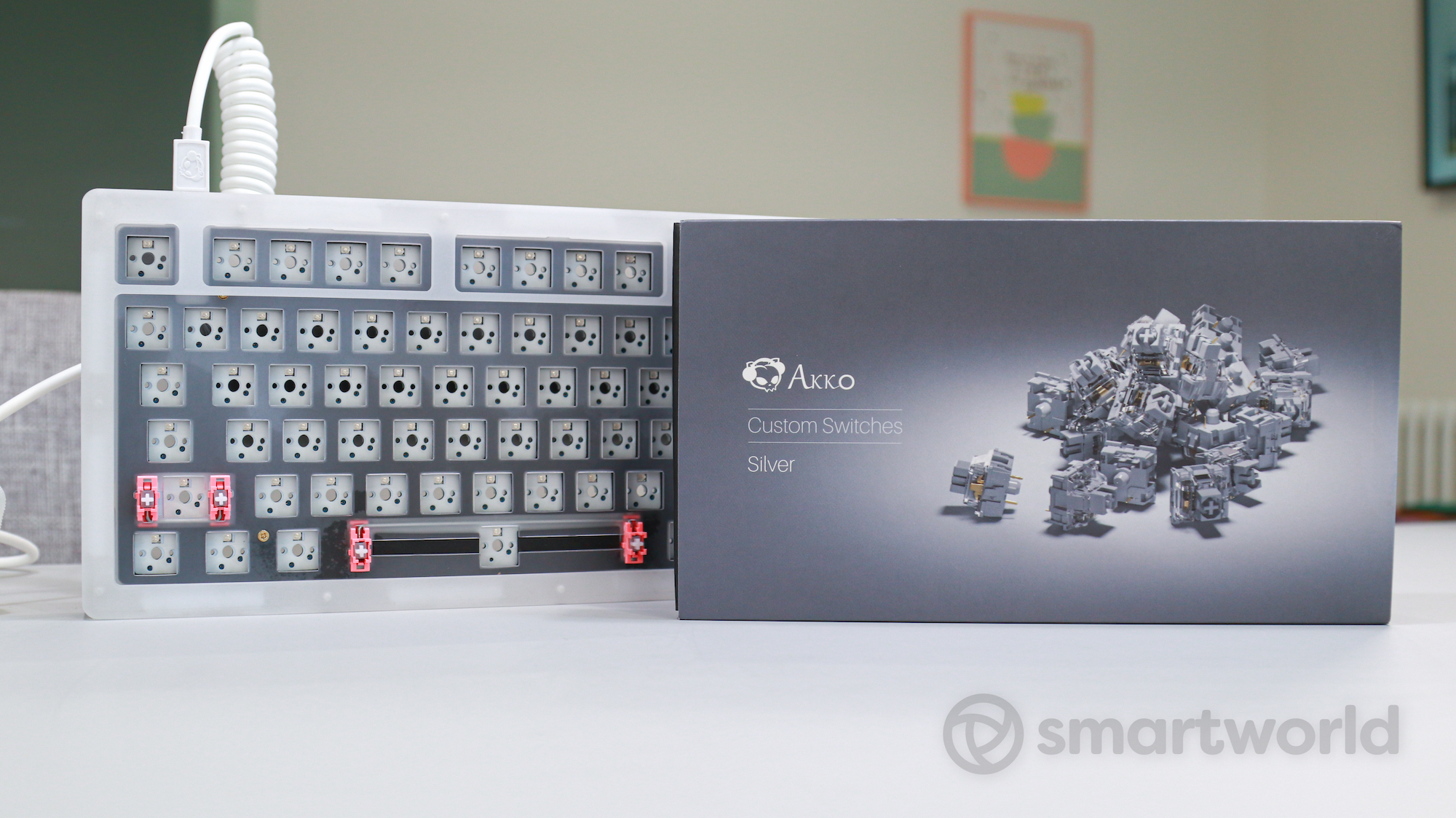

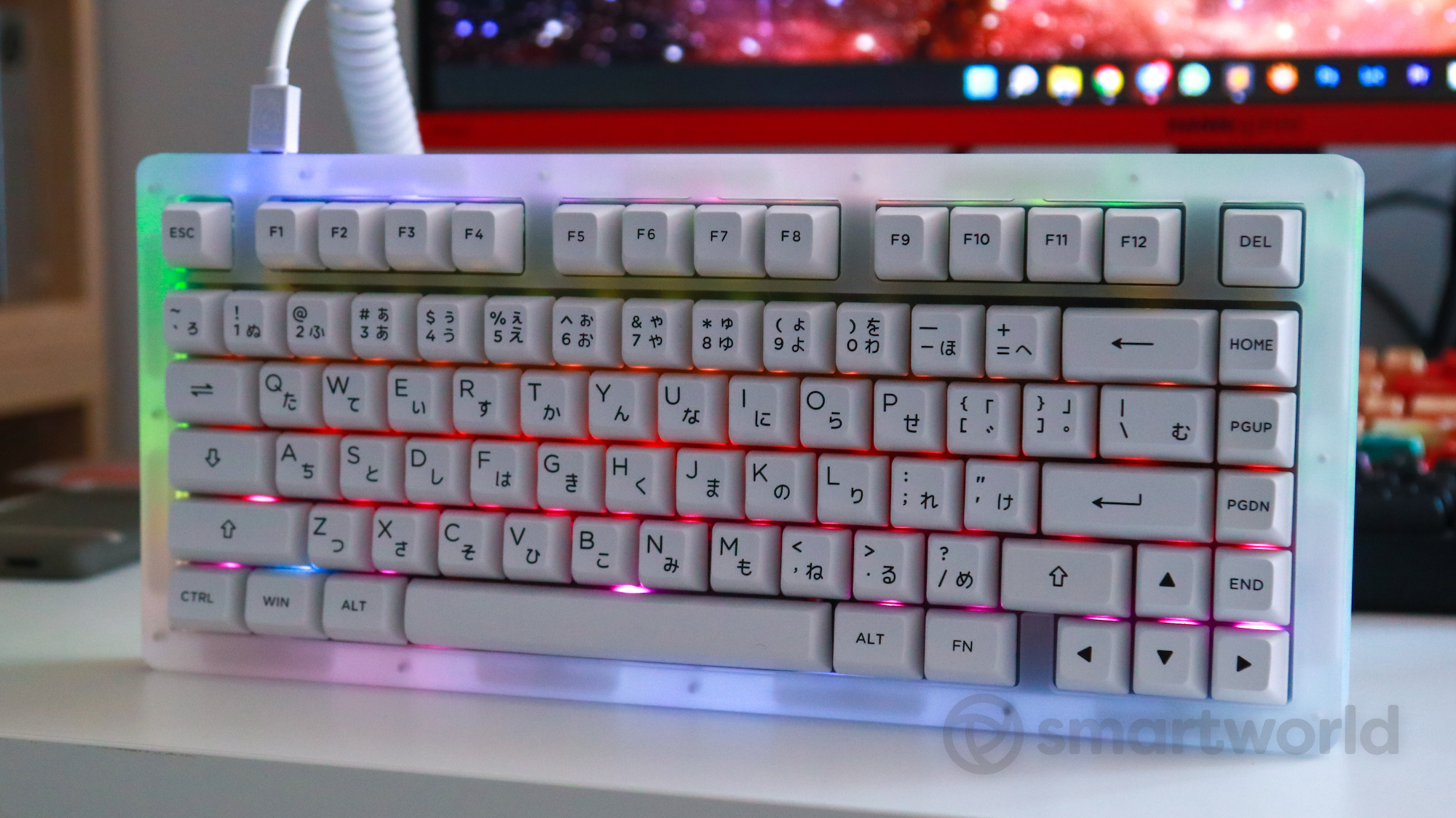

Product Display
